Central Tension Device
Category：
Scope of Application Frame Profile welding Front division panel 2mm sheet, φ5 alumina ceramic eye for yarn guide and rear spacing reed Guide roller “W” type，upper two roller with Dia.122，Lower roller
Keywords：Super-High-Speed Direct Warping Machine,Smart-high-Speed Sectional Warping Machine
InquiryScope of Application
| Frame | Profile welding |
| Front division panel | 2mm sheet, φ5 alumina ceramic eye for yarn guide and rear spacing reed |

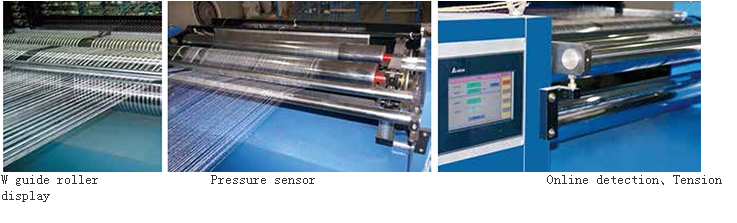

| Guide roller | “W” type，upper two roller with Dia.122，Lower roller with Dia.122 |
| Tension rollerbrake | Solenoid brake |
| Roller driver | Vectorvariable frequency motor |
| Roller control | Closed-loop control by vector variable frequency motor (the constant tension control) |
| Tension detection | Pressure sensor, with on-line display |
| Length measurement | On-line measure and display the length of each warp stripe |
